EcoShred^®2SS

Twin Shaft Shredder - High torque meets high throughput

The twin-shaft shredder EcoShred^®2SS is based on the principle of slow speed and high torque. This approach reduces both noise levels as well as power consumption while achieving highest throuputs. The EcoShred^®2SS is best suited for bulky and big material that includes impurities such as rocks and other metals.

Typical applications:

Mixed-Scrap Shredding
Breaking scrap bales for further processing steps
Pre-Shredding of E-Scrap
Pre-processing of bulky scrap such as barrels
Pre-Processing of Wood

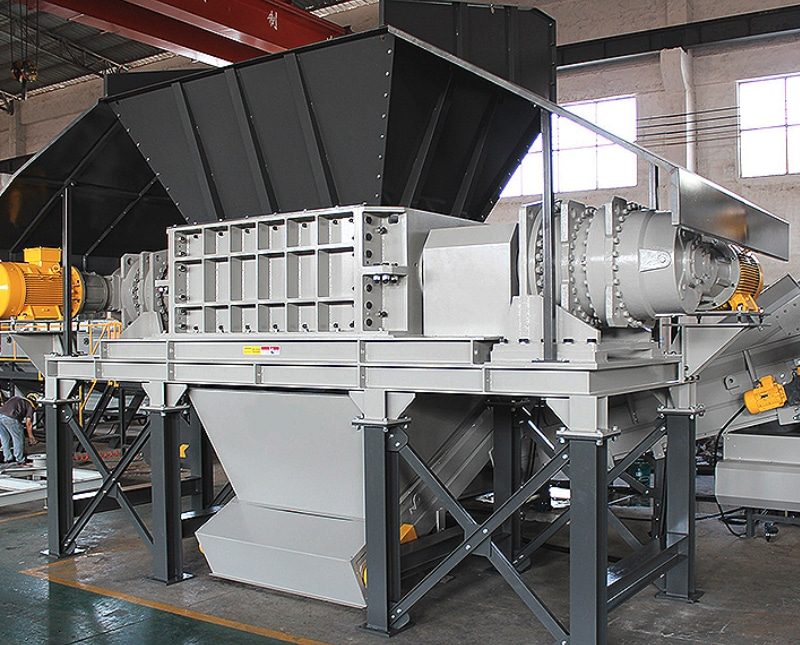

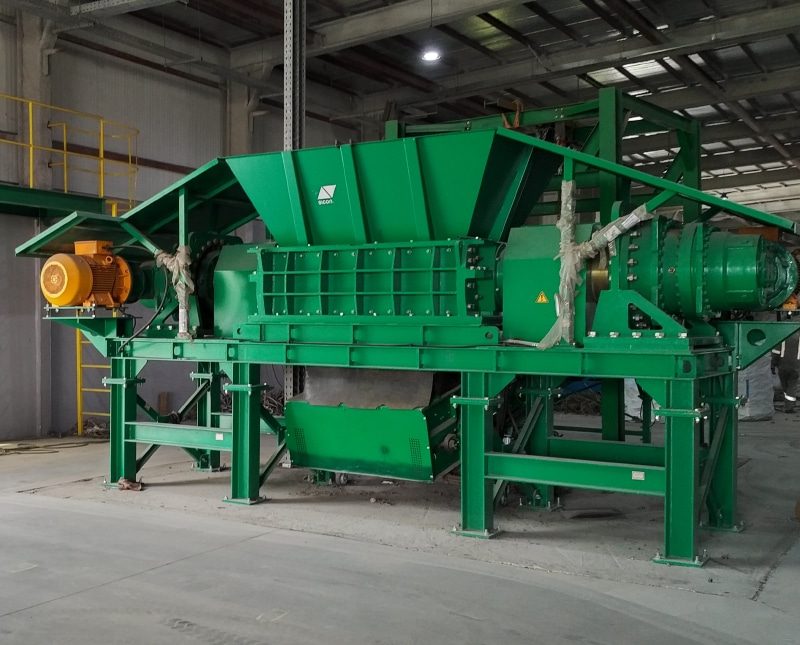

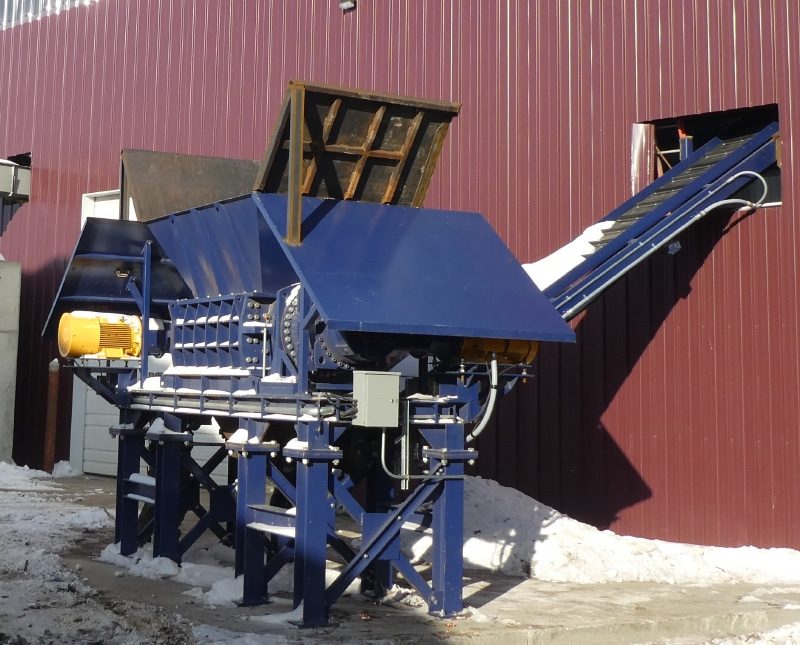

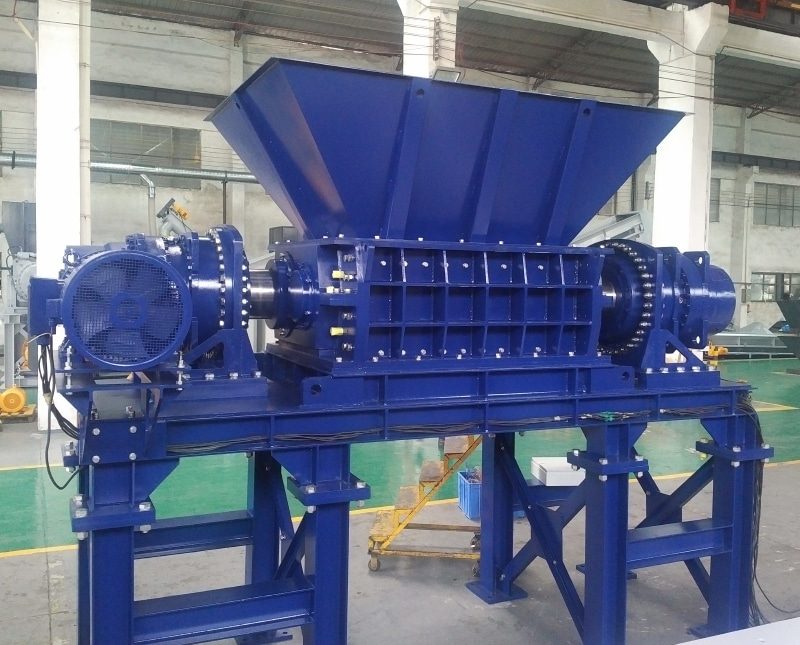

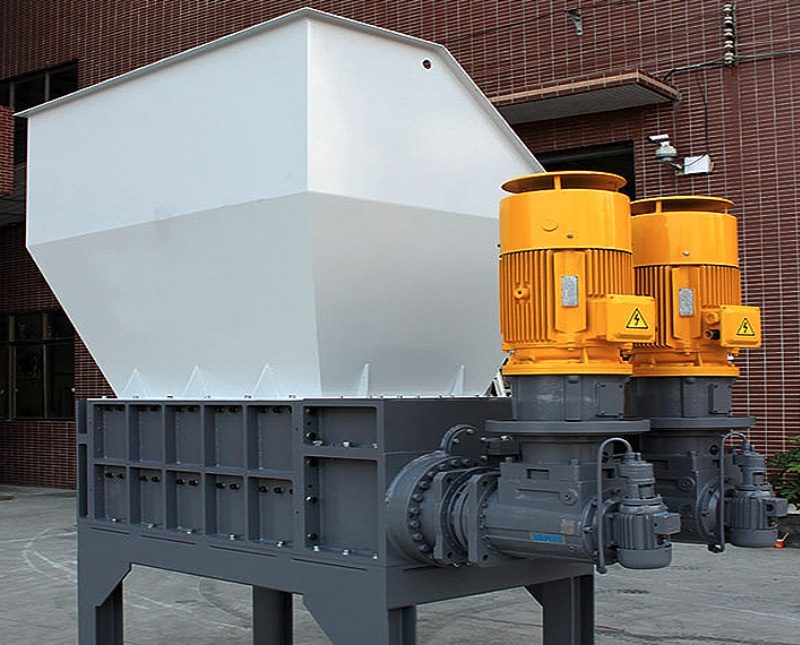

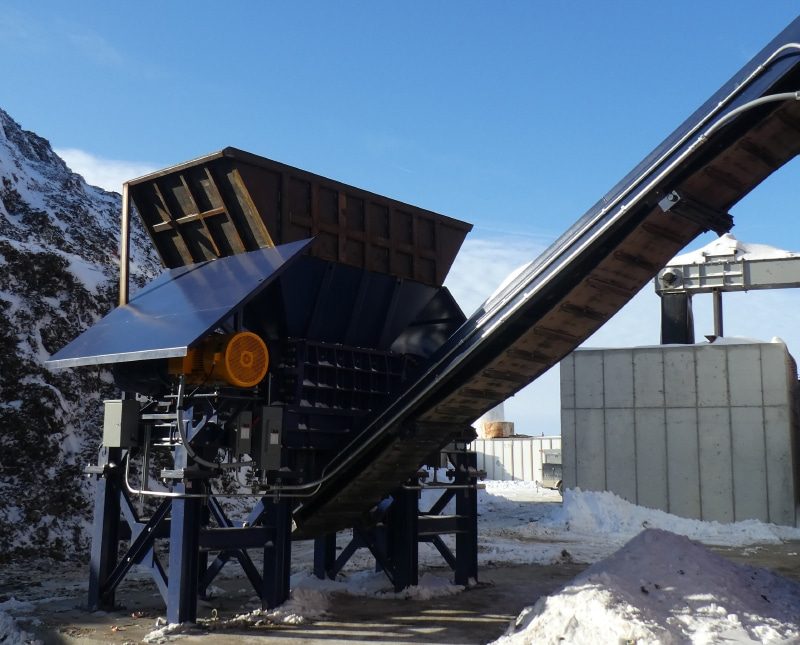

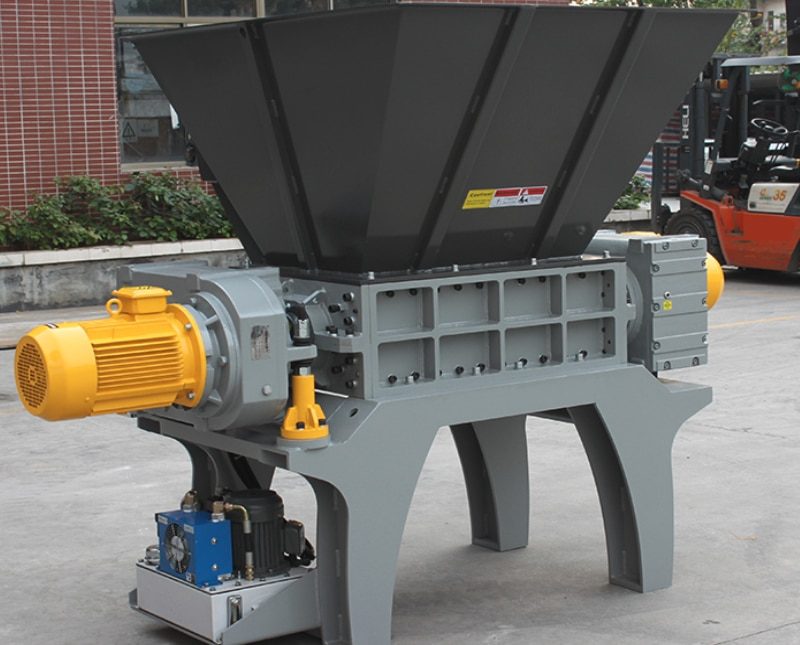

The twin-shaft shredder EcoShred® 2SS works on the principle of low speed and high torque.

EcoShred^® 2SS - Your benefits at a glance

Slow Speed – high torque shredding Approach
Reduced dust emissions and noise levels
Heavy-duty and easy-accessible design
Shock-absorbing gear box housing – reduces stress on drive components
2-piece bearing housing – quick and easy access to rotor and bearings
Adjustable sealing system – protects from foreign particles and guarantees long bearing lifetime
Stand-alone control panel with SPS System
Available with optional electrical or hydraulic drive

Technical specifications

(other sizes on request, subject to change)

	1300X-74kW	1500X-150kW	1800X-180kW	1800X-220kW
Dimension (L/W/H) [mm]	4,892 x 2,210 x 2,600	6,340 x 2,610 x 4,000	6,993 x 3,045 x 4,000	6,993 x 3,045 x 4,000
Chamber size [mm]	880 x 1,320	1,500 x 1,440	1.800 x 1,440	1,800 x 1,440
Chamber size [mm]	1,250	1,550	1,550	1,550
Rotor diameter Ø [mm]	515	750	750	750
Rotor operating length [mm]	1,300	1,500	1,800	1,800
Rotation speed [rpm]	5,4-12	5,4-12	5,4-12	5,4-12
Driver power [kW]	37+37	75+75	90+90	110+110
Hopper volume [L]	1,700	3,600	4,000	4,000
Approx. Weight [kg]	10,300	27,700	32,450	32,450
