WetFloat®

Your wet table for ultra-pure fractions

How does a wet separation table work?

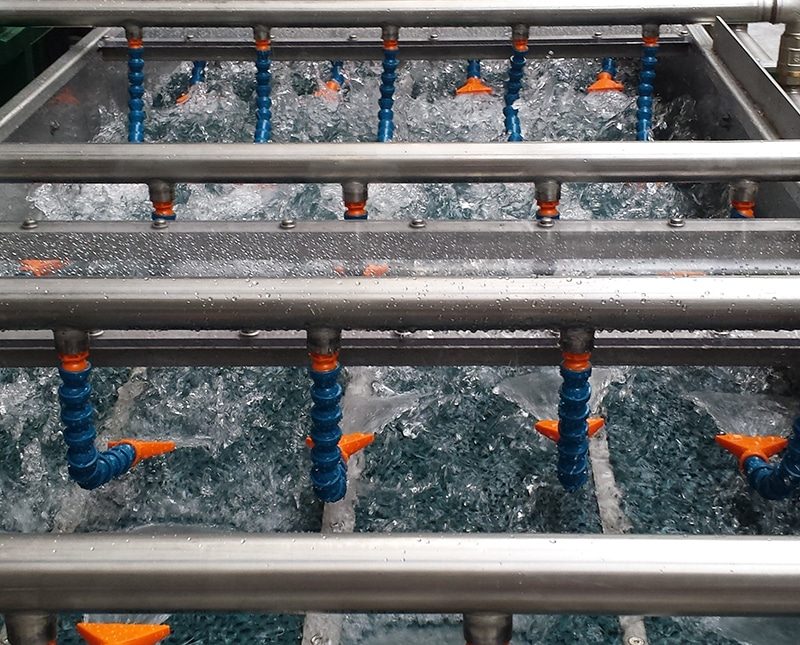

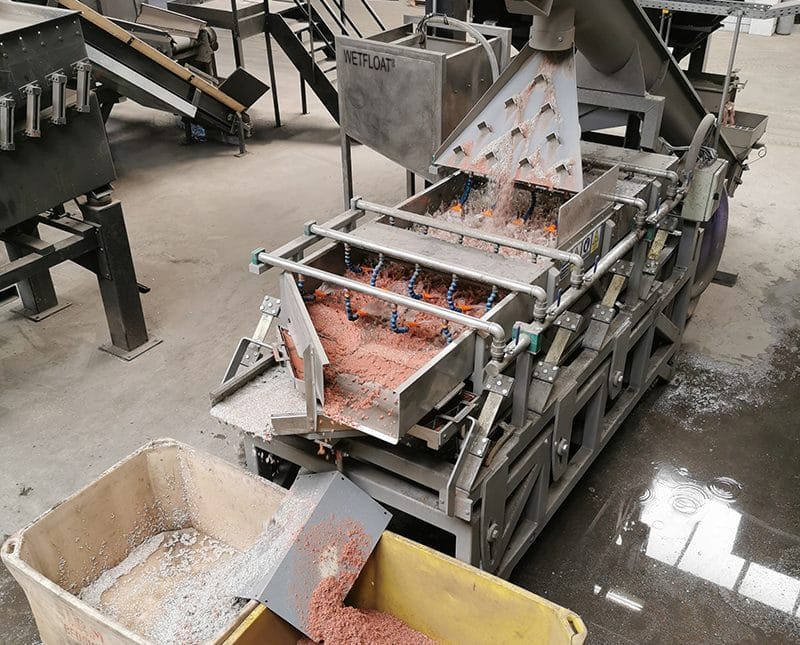

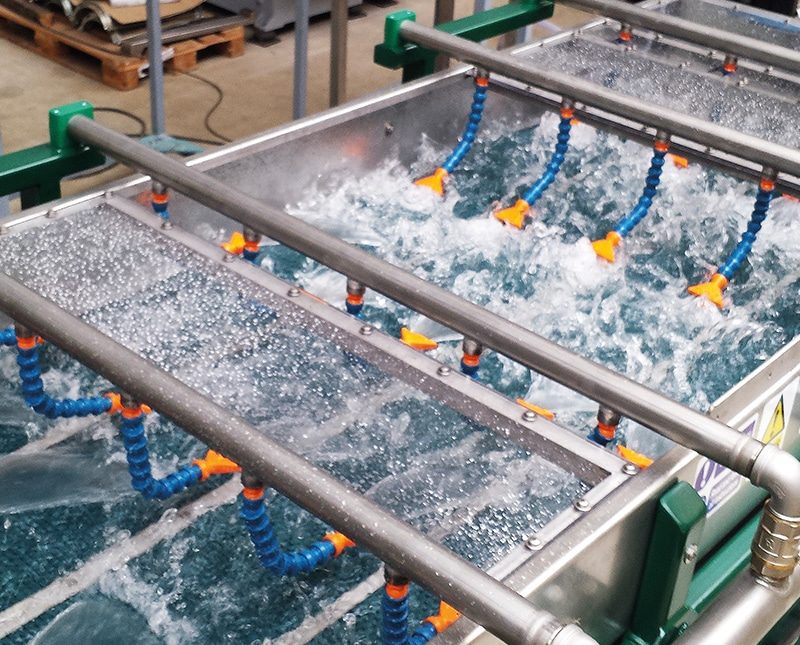

After granulation or similar processing steps, mixed fractions, such as non-ferrous mixtures or aluminum-copper mixed fractions, are fed onto a separation deck of the WetFloat. A steady and continuous water supply creates a float on the deck causing light particles such as plastics to float while heavier particles such as metals descend to the bottom of the separation deck. Adjustable by the tilt of the table, the light-floating particles are conveyed towards the lower part of the WetFloat. Simultaneously, the vibrating separation deck transports the heavy particles in the opposite direction towards the upper end of the WetFloat. As a result the WetFloat produces two material-pure fractions.

The WetFloat® is an extremely reliable, highly selective and easy to use wet table!

WetFloat® - Your benefits at a glance

  • Density-based separation of multiple materials
  • Metal separation from wire mixture
  • Separate Copper and Aluminum into purest fractions
  • Metal Recovery from E-Scrap
  • Significant reduction in metal losses
  • Constant product quality
  • Dedusting not required
  • Adjustable tilt-angle for material-specific configuration
  • Low water consumption due to closed loop design
 WetFloat® 2000 – 300WetFloat® 2500 – 600WetFloat® 3000 – 1000
Dimensions [mm/inch]2,600 x 850 x 1,350 / 102 x 33 x 533,400 x 1,100 x 1,350 / 134 x 43 x 533,600 x 1,400 x 1,600 / 141 x 55 x 63
Dimensions Separation Deck [mm/inch]2,000 x 300 / 78 x 122,500 x 600 / 98 x 243,000 x 1,000 / 118 x 39
Weight [kg/lbs]320 / 705750 / 1,6501,200 / 2,650
Drive [kW/HP]1,5 / 23 / 43 / 4
Throughput capacity [kg/h / lbs/h]300 – 400 / 660 – 880700 – 800 / 1540 – 1,7601,200 – 1,300 / 2,640 – 2,860

Product video

The WetFloat in action – Tested in our Technical Research Center!



Duration: 1.50 minutes

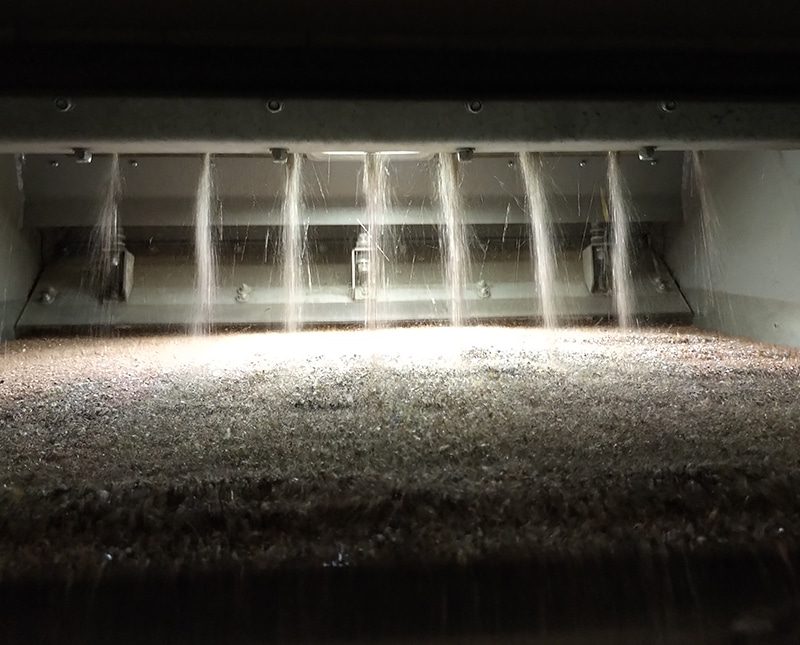

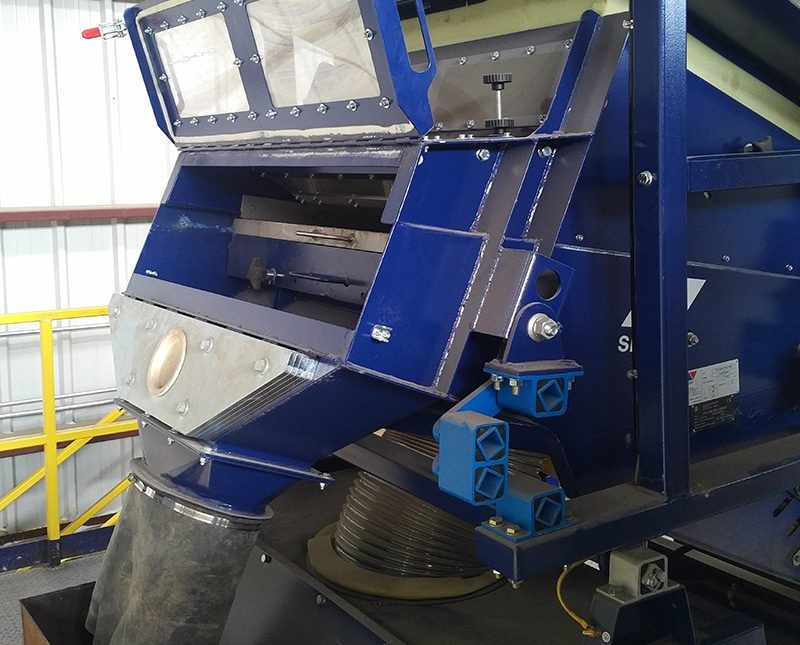

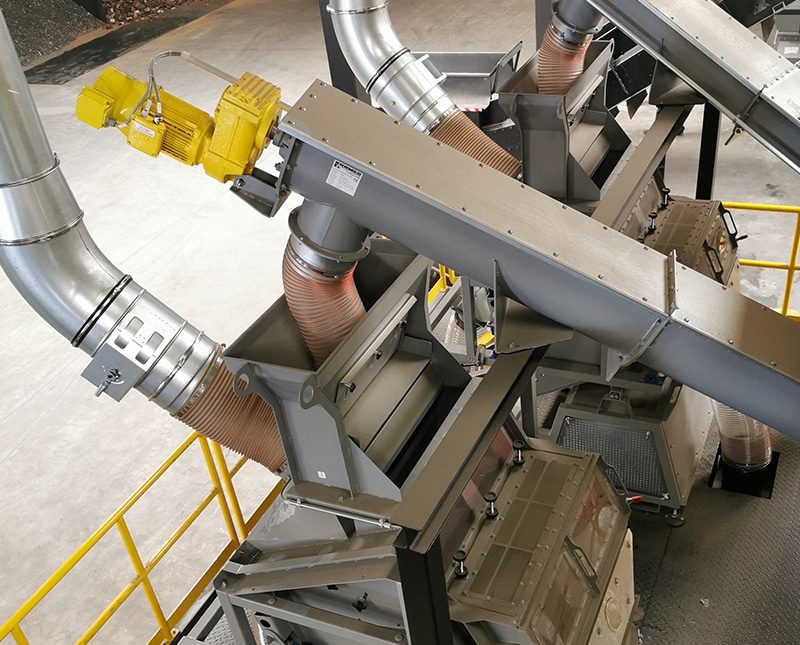

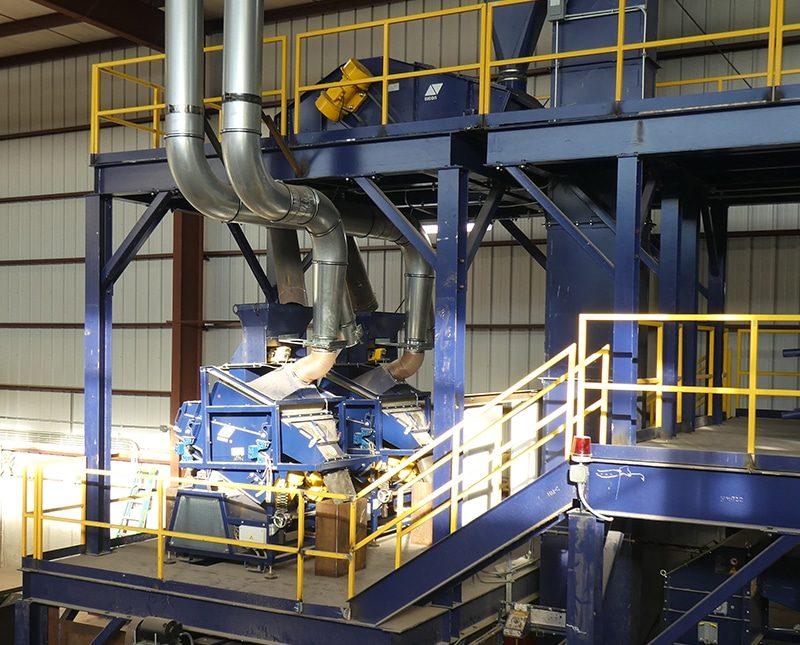

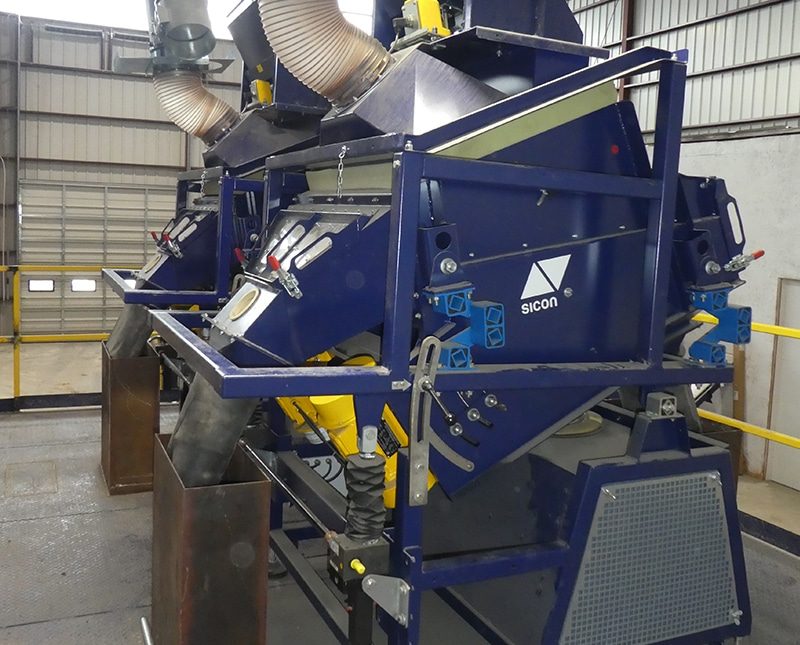

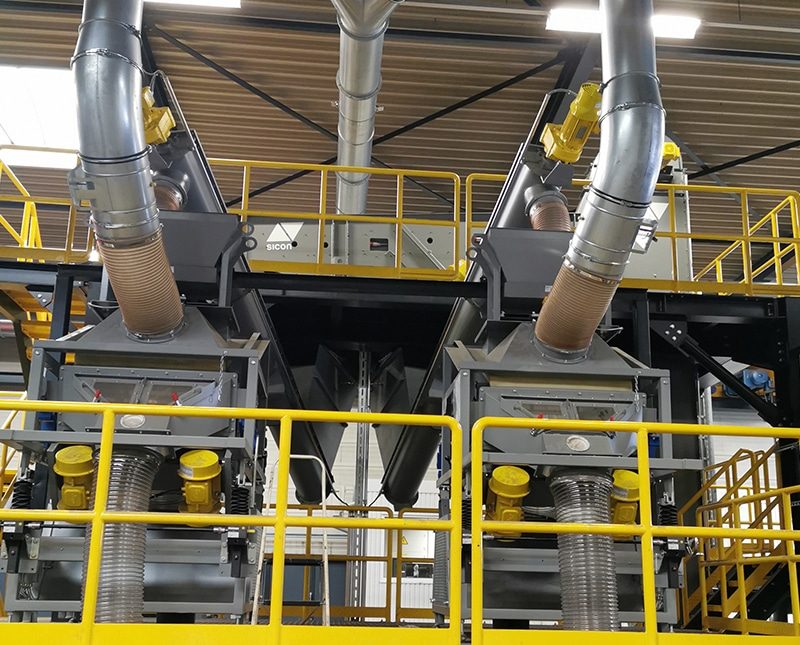

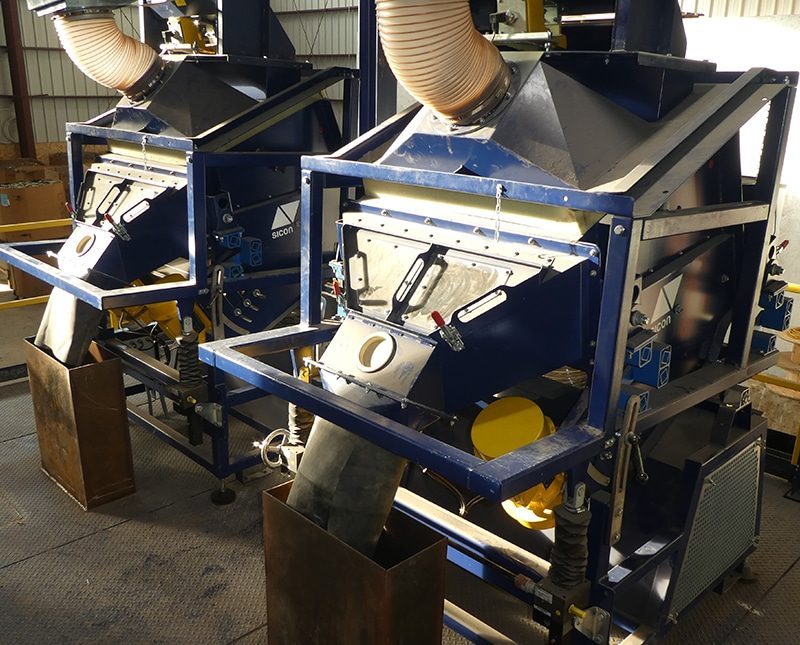

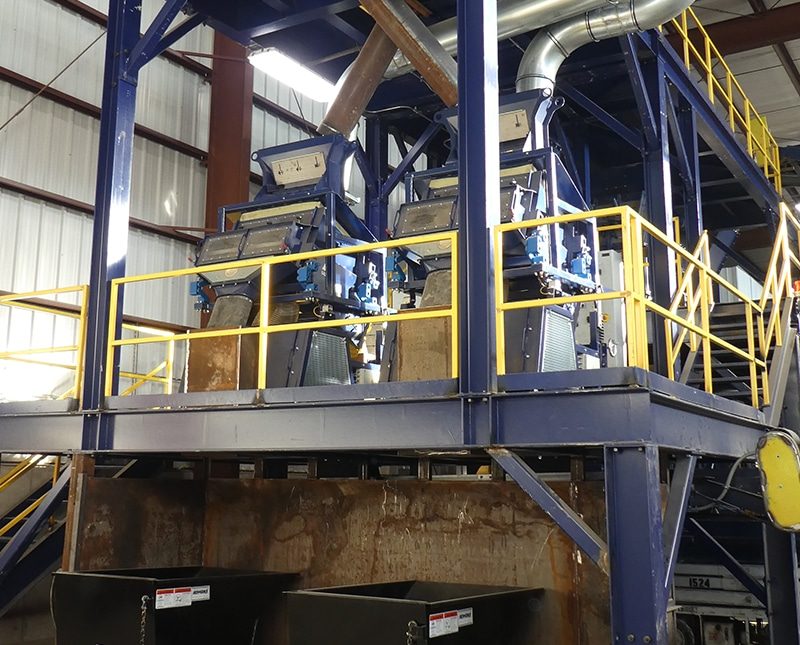

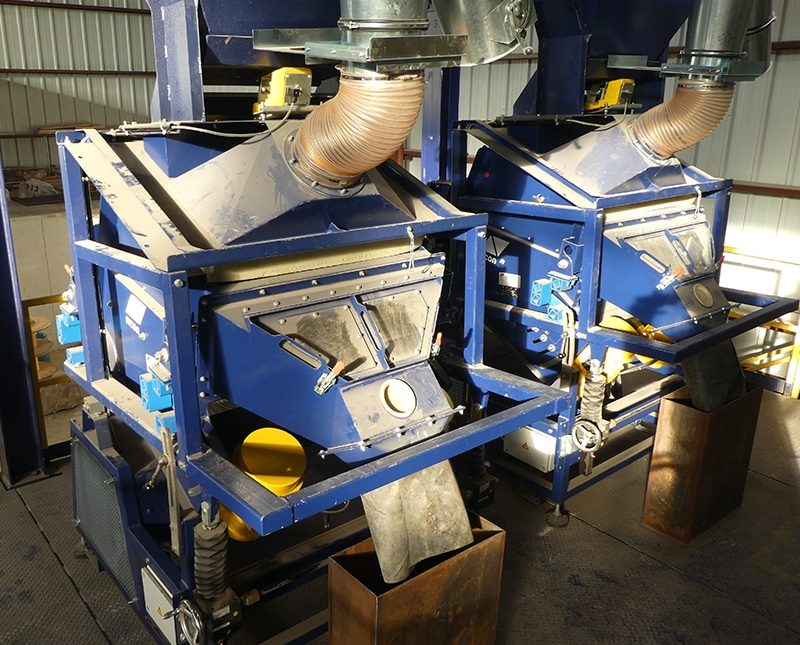

SICON AirFloat: Your option for dry separation:

  • Closed construction, no dust emissions
  • Small feed hopper on top (for controlled feeding)
  • Adjustable fan and vibration speed
  • Easy access for maintenance
  • Adjustable inclination
  • Adjustable amplitude
  • Optimized design for reduced extraction volume
